Food Safety Program

Mobile Food Facility Plumbing Diagram Example

Limited Food Preparation

Example

Hot Dog Cart or Tamale Cart

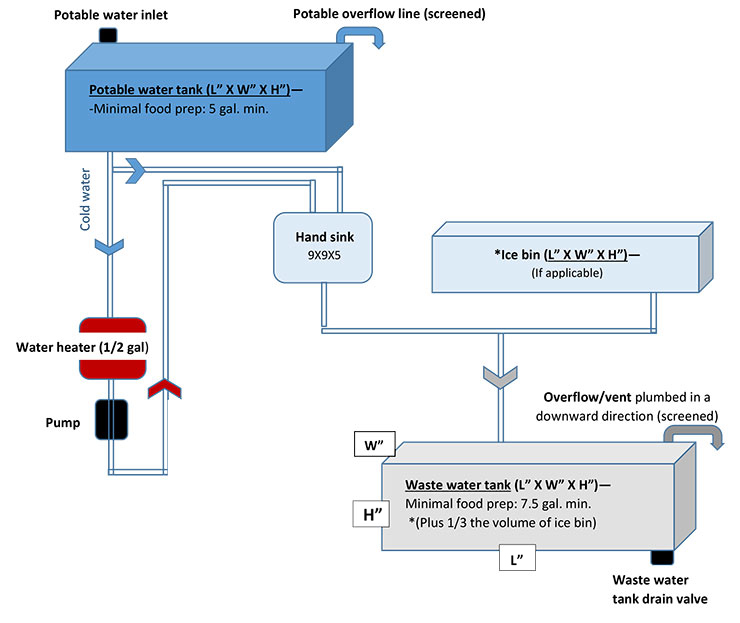

MFF limited plumbing diagram 740

If you need assistance with this Diagram depicting the pluming for potable water including placement of water heater, hand sink, Iie bin and waster water tank please contact Environmental Health & Safety at (707) 565-6565
