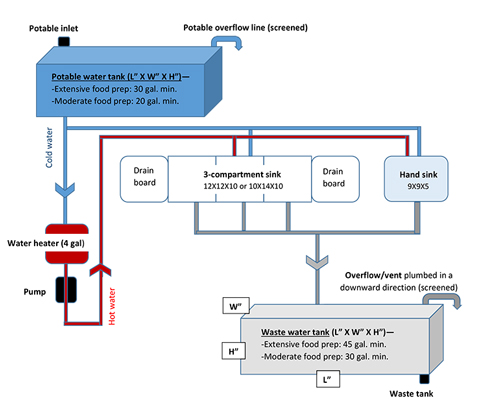

Mobile Food Facility Plumbing Diagram Example
Food Preparation
Water supply protected with hose bib vacuum breaker.
ANSI/NSF approved potable water hose of different color from liquid waste lines
Example
Taco Truck/Trailer (extensive preparation) or Espresso Cart (moderate preparation)
If you need assistance with this Diagram depicting the pluming for potable water including placement of water heater, hand sink, Iice bin and waster water tank please contact Environmental Health & Safety at (707) 565-6565
