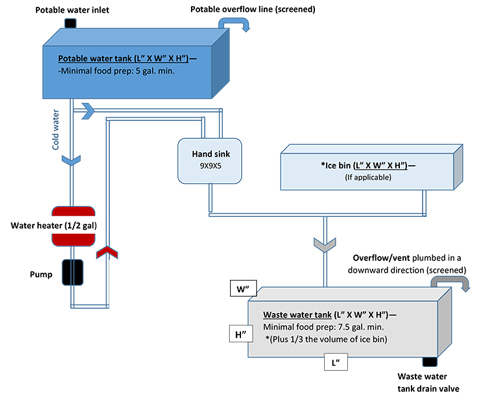

Mobile Food Facility Plumbing Diagram Example
Limited Food Preparation
Water supply protected with hose bib vacuum breaker.
ANSI/NSF approved potable water hose of different color from liquid waste lines
Example
Hot Dog Cart or Tamale Cart
If you need assistance with this Diagram depicting the pluming for potable water including placement of water heater, hand sink, Iice bin and waster water tank please contact Environmental Health & Safety at (707) 565-6565
